Size: 270x150x200 mm

Weight: 5,5 kg

Operating pressure: 7/9 bar

Complete with pedal board

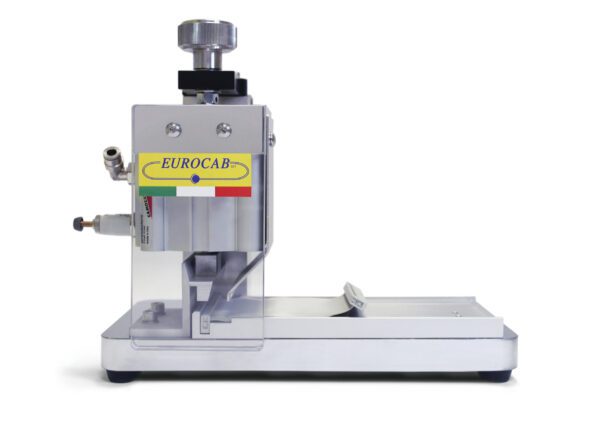

press for ribbon cables


Guide rails to insert the ribbon cable. Pneumatic cylinder to insert the connector.

Connector insertion from 10 poles of 64/96 poles pitch 2,54 (64 poles arranged in two rows / 96 poles arranged on three rows).

Adjustable operating pressure through the flux regulator (7/9) bar.

The main feature that differentiate this device from the others on the market is the extensive customization

Based on the connectors that the customer needs to crimp; the guides are in fact customizable, by specific request, to crimp different types of connectors, for example:

  • Male pitch 2 and 2,54
  • Female pitch 2 and (2,54) in 2 and 3 rows
  • D-SUB

This device, completely designed and produced in Italy, boasts a quite small size.

Here are some examples of the wide range of crimping allowed by the device:

Weight 11,5 kg
Dimensions 36 × 15 × 23 cm
