TG.45 cutting

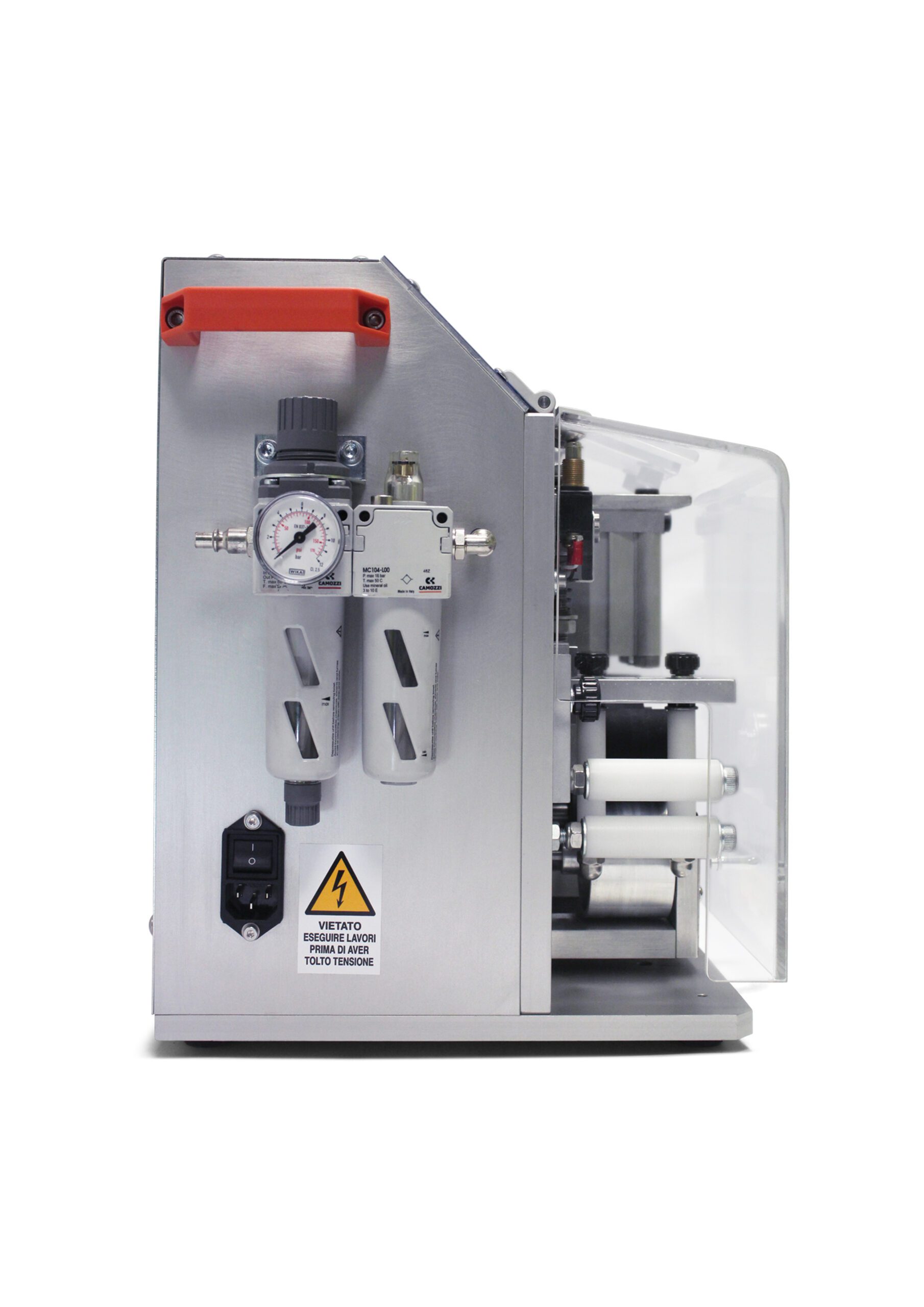

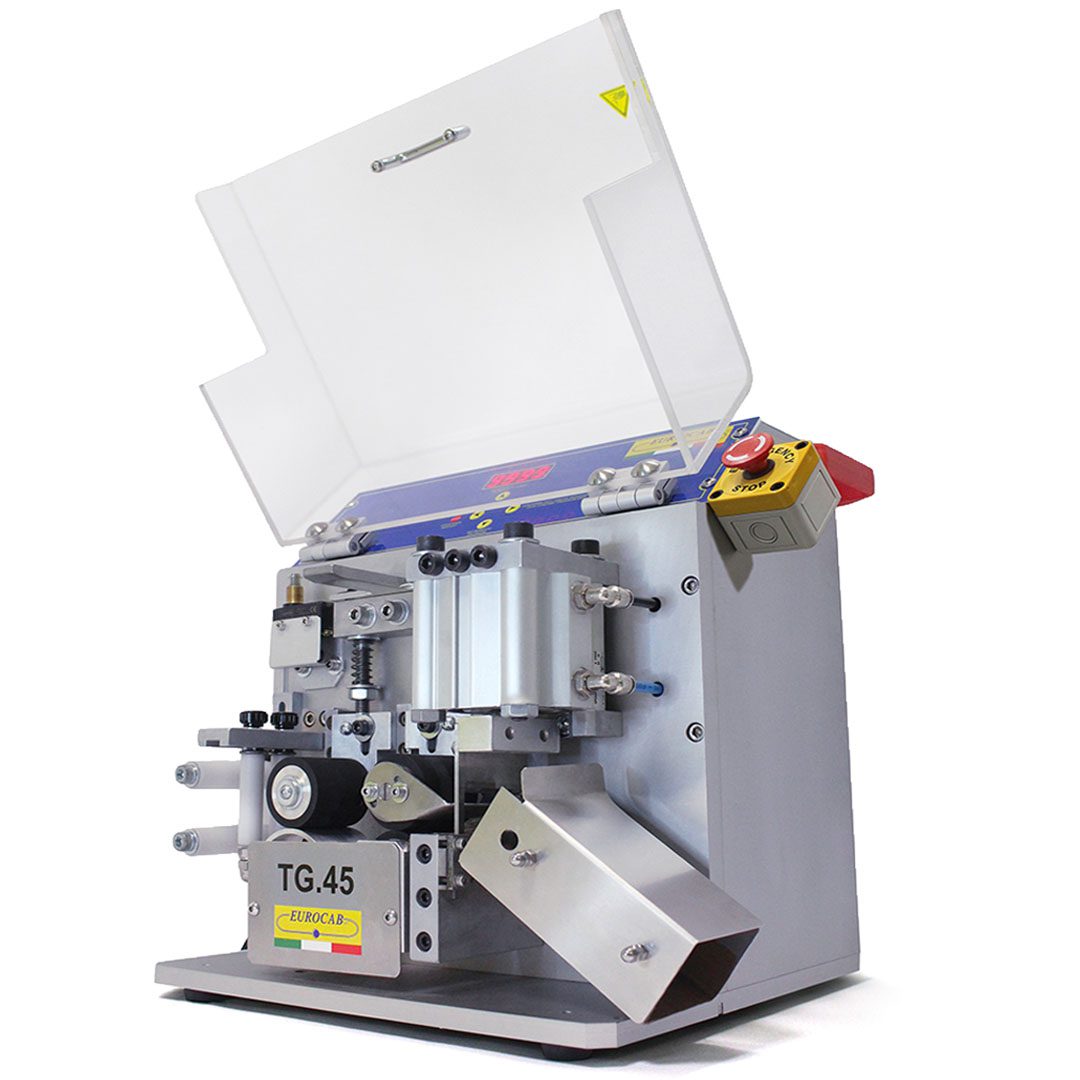

TG.45 is an Electro-pneumatic cutting machine of small dimensions, transportable by handles in any operating area, it has great versatility.

Size: 340x305x370 mm

Weight: 25 kg

Operating pressure: 6 bar

Power supply: 230 V – 50 Hz

TG.45 cutting

FEATURES:

TG.45 is an Electro-pneumatic cutting machine of small dimensions, transportable by handles in any operating area, great versatility.

Control panel consisting of only four membrane keys, easy to understand and program.

Able to cut multi-core cables, single-core cables, up to sect. 25mm2, PVC sheaths, silicone etc, flat up to 45mm width. Unwinding and cutting length from 1mm to 100mt.

The device is compliant to EC regulations.

The material introduction area is easy and quick to access, by lifting the rollers with a single lever, and adjusting without using other tools.

Cutting area with automatic material ejection, with cutting blades in WIDIA material for a long life.

Here are some examples of cables and sheats that the device is able to cut :

Weight 11,5 kg
Dimensions 36 × 15 × 23 cm
