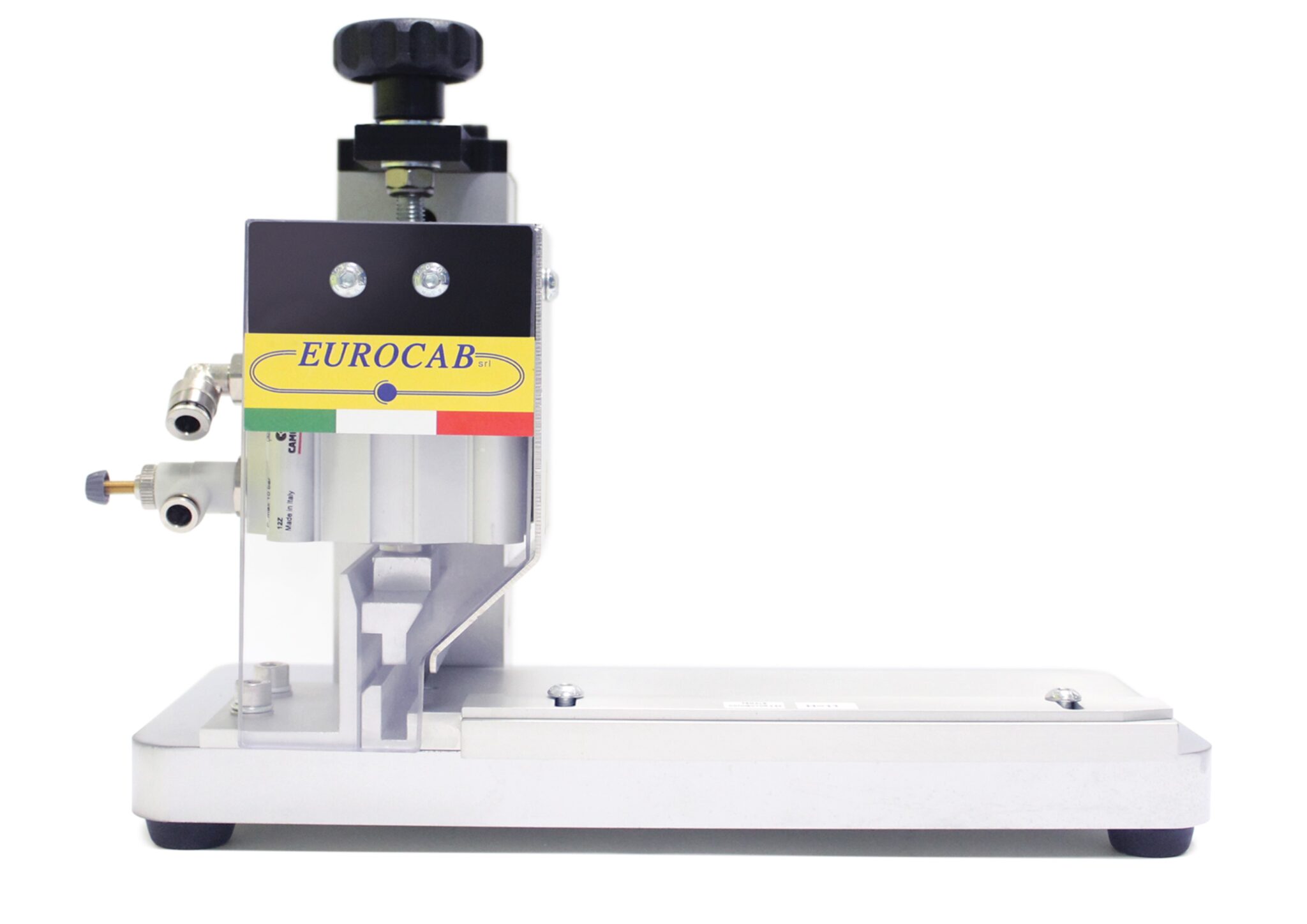

PF50

press for ribbon cables

FEATURES:

Guide rails to insert the ribbon cable. Pneumatic cylinder to insert the connector.

Insertion of connectors from10 pins pitch 0,635 / 2 / 2,54, to 50 pins pitch 0,635 / 2 / 2,54.

Adjustable operating pressure through the flux regulator (7/9) bar.

The main feature that differentiate this device from the others on the market is the extensive customization

Based on the connectors that the customer needs to crimp; the guides are in fact customizable, by specific request, to crimp different types of connectors, for example:

• male pitch 1- 2 – 2,54,
• female pitch 1- 2 – 2,54,
• Micro-Match, D-SUB, etc..

This device, completely designed and produced in Italy, boasts a quite small size.

Here are some examples of the wide range of crimping allowed by the device:
