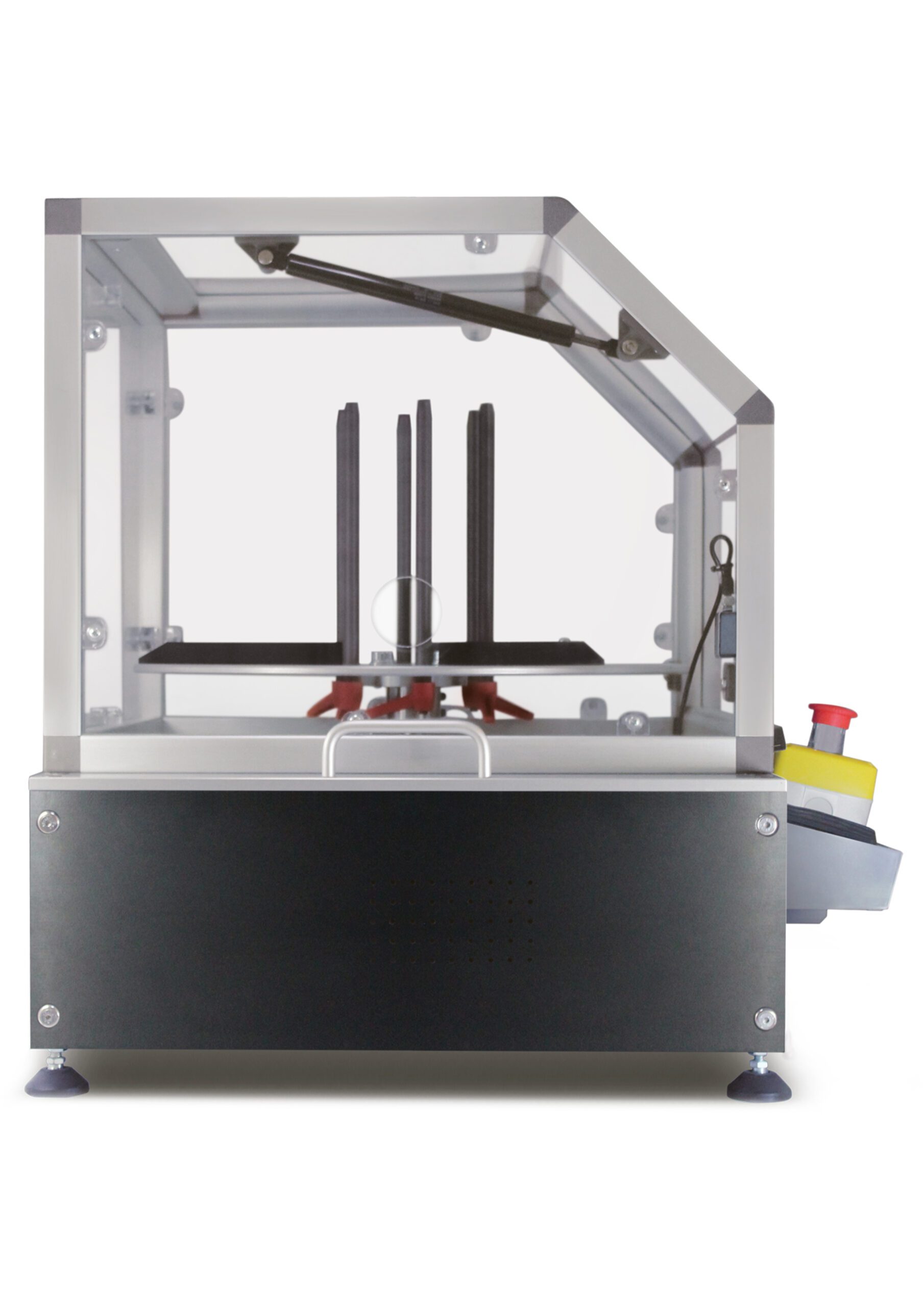

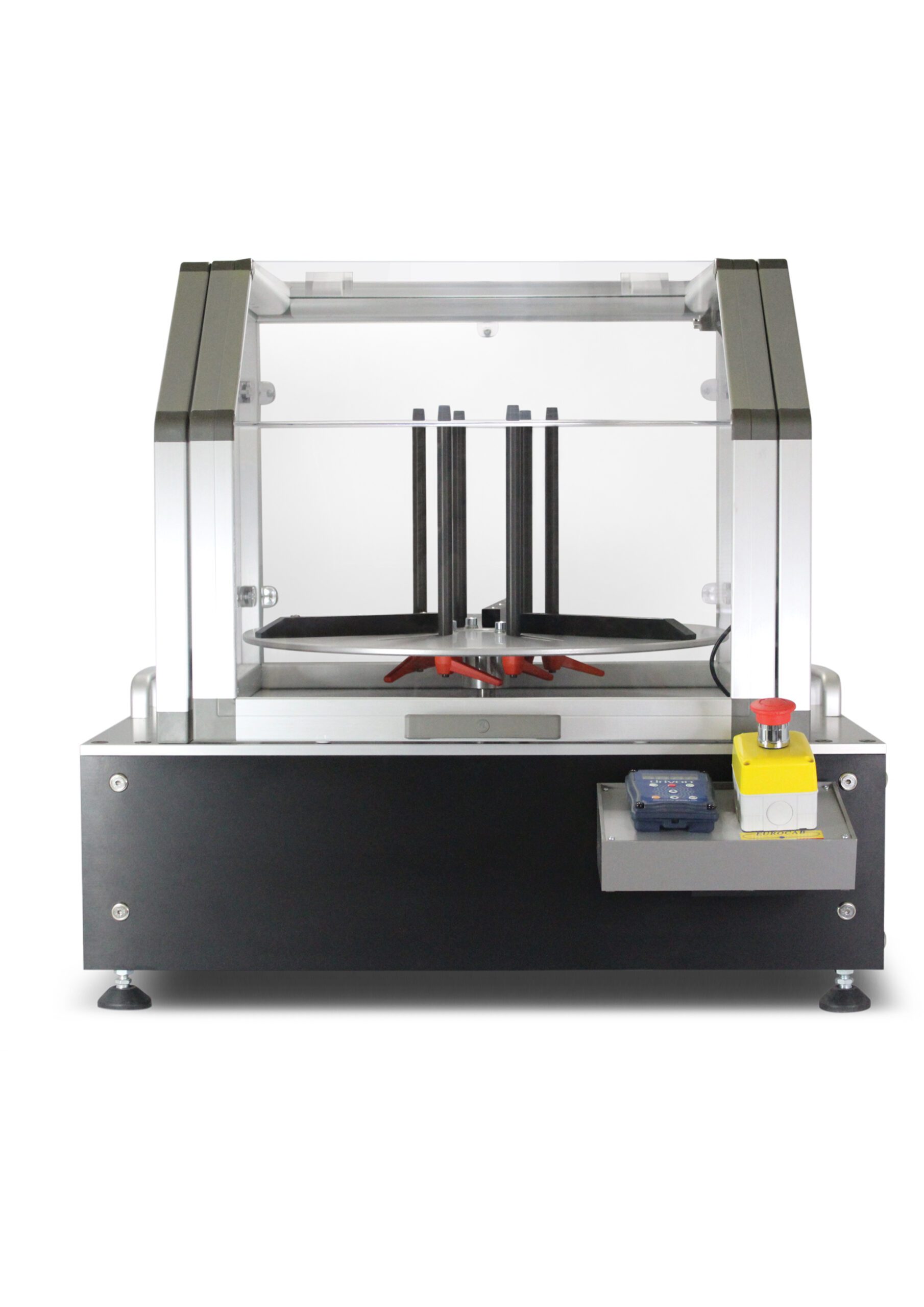

Cable reel AV 500

Category:

MACHINE SPECS:
Size: 740x600x580 mm
Weight: 40 Kg
Power: 230 V ; Hz: 50/60 (network)

HANK SPECS:
Minimum internal diameter: 150 mm
Maximum internal diameter: 330 mm
Maximum external diameter: 450 mm
Maximum height: 200 mm
Maximum weight: 12 Kg

Cable reel (with inverter)

For a wide range of cables.

Upstream and downstream machine connection option.

The control, the setting and the speed are determined and changeable through the control panel on the right side of the operator.

This device meets the CE compliance requirements.

The regulation of the internal diameter of the hank is fast and secure, without needingany utensils.

Weight 50 kg
Dimensions 80 × 80 × 60 cm
